Technicial Specifications
| Engine Model | Cat 3406C |
| Power - Net | 226 kW |
| Net Power - Rated - ISO 9249/SAE J1349 | 226 kW |
| Net Power - Rated - ISO 9249/SAE J1349 (DIN) | 307 mhp |
| Build Number | 18A |
| Emissions | Noncertified |
| Biodiesel Capability | Up to B100* |
| Note (1) | Net power advertised is the power available at the flywheel when engine is equipped with a fan at maximum speed, air cleaner, muffler and alternator. Advertised power is tested per the specified standard in effect at the time of manufacture. |
| Note (2) | *Cat engines are compatible with the following renewable, alternative, and bio-fuels** with lower greenhouse gas emission impact: Up to B20 biodiesel (FAME)***, up to 100% HVO and GTL renewable fuels. **Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. ***Up to B100 capable when equipped with optional B100-compliant fuel lines. Please consult the Operations and Maintenance Manual (OMM) for further information. |
| Operating Weight | 37557 kg |
| Powertrain | Fully Mechanical |
| Fuel Tank | 625 l |
| Operating Weight | 37557 kg |
| Ground Pressure | 85.3 kPa |
| Width of Standard Shoe | 610 mm |
| Blade | Semi-Universal (SU) |
| Blade Capacity | 8.7 m³ |
| Operating Weight | 37876 kg |
| Ground Pressure | 86 kPa |
| Width of Standard Shoe | 610 mm |
| Blade | Semi-Universal (SU) |
| Blade Capacity | 8.7 m³ |
| Note (1) | Configurations and features may vary by region. Please consult your Cat dealer for availability in your area. |
Advantages and Features
FITS YOUR BUSINESS NEEDS
- Cost effective to own and operate - up to 10 percent lower owning cost compared to D8T.
- Choices like General Duty undercarriage and a simplified ripper offer lower initial purchase price options.
- Delivers the weight and horsepower you need for solid dozing and ripping performance.
- Equipped with the well-known Cat 3406C engine and mechanical transmission for power and ease of maintenance.
BECAUSE UPTIME COUNTS
- Easy maintenance with widely available parts.
- Simple mechanical systems are easy to diagnose, maintain and repair, even in remote locations.
- Major components are modular for easy maintenance and repair access.
- Wide access doors and grouped service points save routine maintenance time.
- Individual radiator cores can be quickly replaced for ease of service.
- Exclusive new Cat hydraulic and power train oil filters offer extended service intervals to save you time and money.
- Product Link™ telematics* help simplify your maintenance by tracking machine location and service hours.
BUILT TO LAST
- Caterpillar designed power train components work as a system for reliability and performance.
- Durable, proven Cat 3-speed mechanical planetary power shift transmission.
- Heavy structures make for a robust machine that can stand up to high impact shock loads and twisting forces.

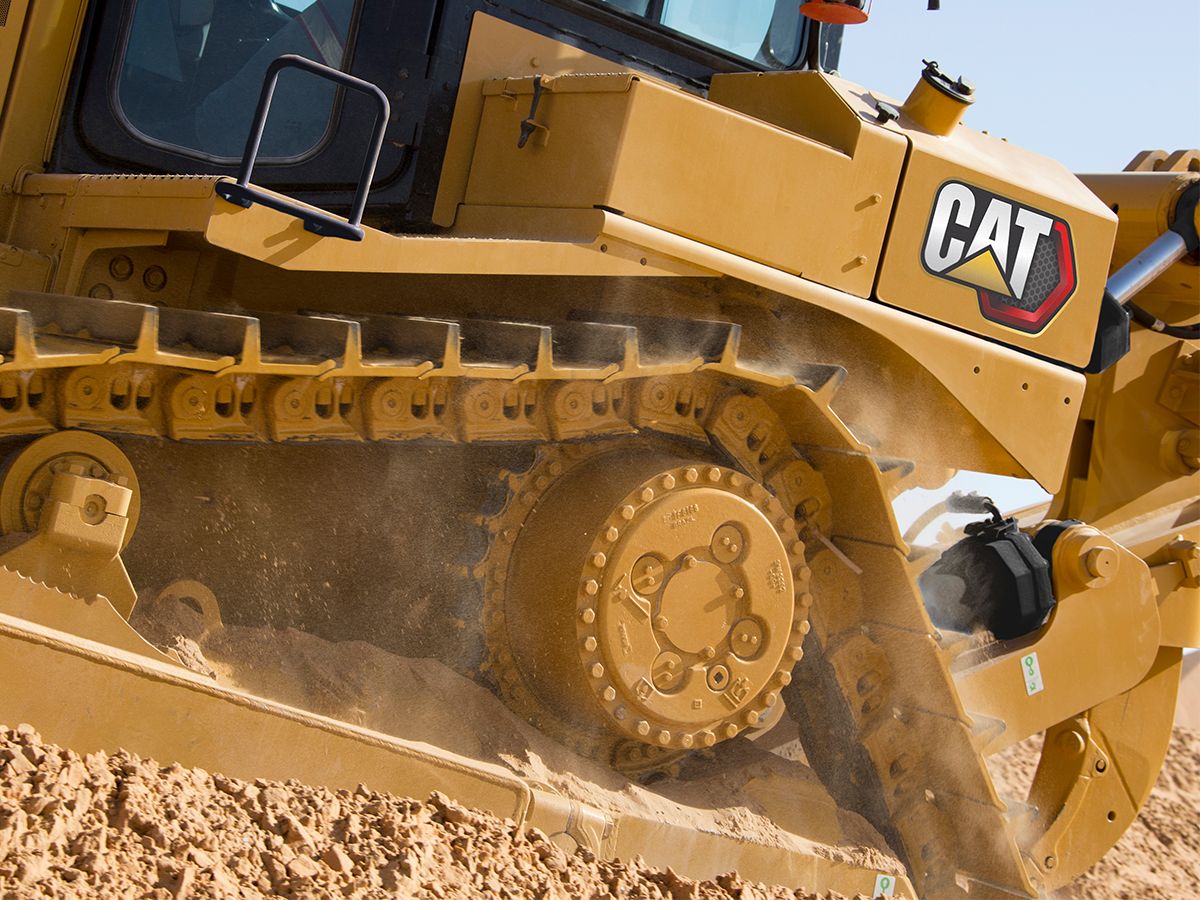

- Caterpillar elevated sprocket undercarriage protects the power train from shock loads.
- Suspended undercarriage provides a smooth ride and better traction in uneven terrain.
HARD WORKING
- Harness more power to the ground with a proven, Caterpillar exclusive torque divider.
- Differential Steering maintains full power to both tracks for best-in-class turning, even with a full blade load.
- High drive design allows heavy components to sit low in the mainframe, resulting in a low center of gravity and excellent machine balance.
- Dedicated implement pump ensures hydraulic power when you need it.
- Proven Advanced Modular Cooling System (AMOCS) offers cooling capacity and air flow so you can work in the most demanding environments.
OPERATOR PRODUCTIVITY

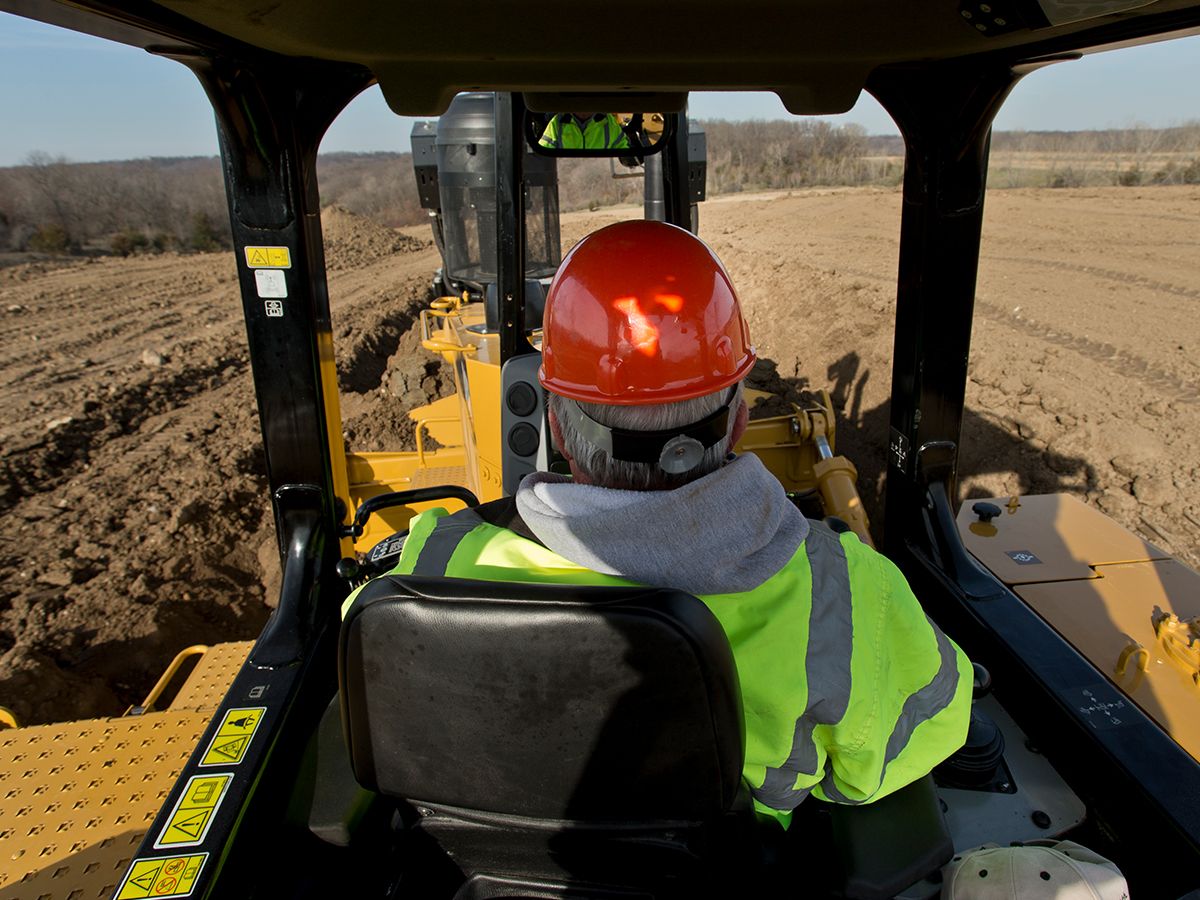

- Choice of cab or canopy dozer, with Integrated Roll Over Protective Structure (ROPS/FOPS), for comfort, excellent visibility and added safety.
- Simple tiller bar control for direction and gear selection offers easy operation and precise control in close areas.
- Quiet cab interior, pressurized to help keep out dust for a cleaner operating environment.
- Easy-to-read analog display with machine health monitoring keeps operator informed about machine operating conditions.
- Added comfort with available cab air conditioning.

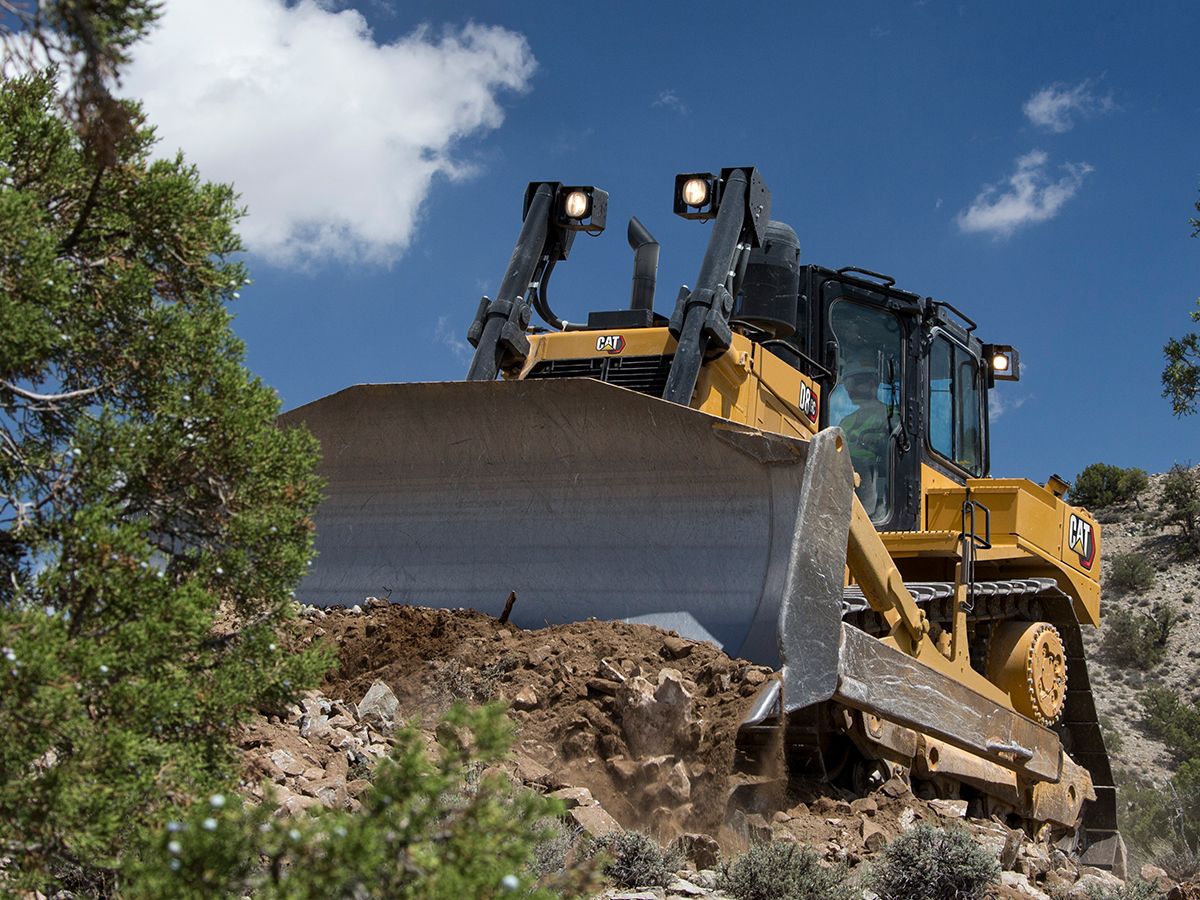

- Choose from three light packages, all with longer life, brighter LED bulbs to illuminate your work area.
UNDERCARRIAGE DURABILITY
- Choose Heavy Duty undercarriage for aggressive, high-impact applications like logging/reforestation, side slopes and rocky conditions.
- General Duty undercarriage is available for low-to-moderate impact applications.
- General Duty and Heavy Duty components are interchangeable and Heavy Duty shoes can be installed on General Duty link assemblies to maximize flexibility to meet your needs.
EQUIPPED FOR THE JOB
- Semi-Universal (SU) blade gives you the capacity you need for a wide variety of earthmoving jobs.
- Add an optional Rock Guard and Wear Plate to the blade for added durability and longer wear life.

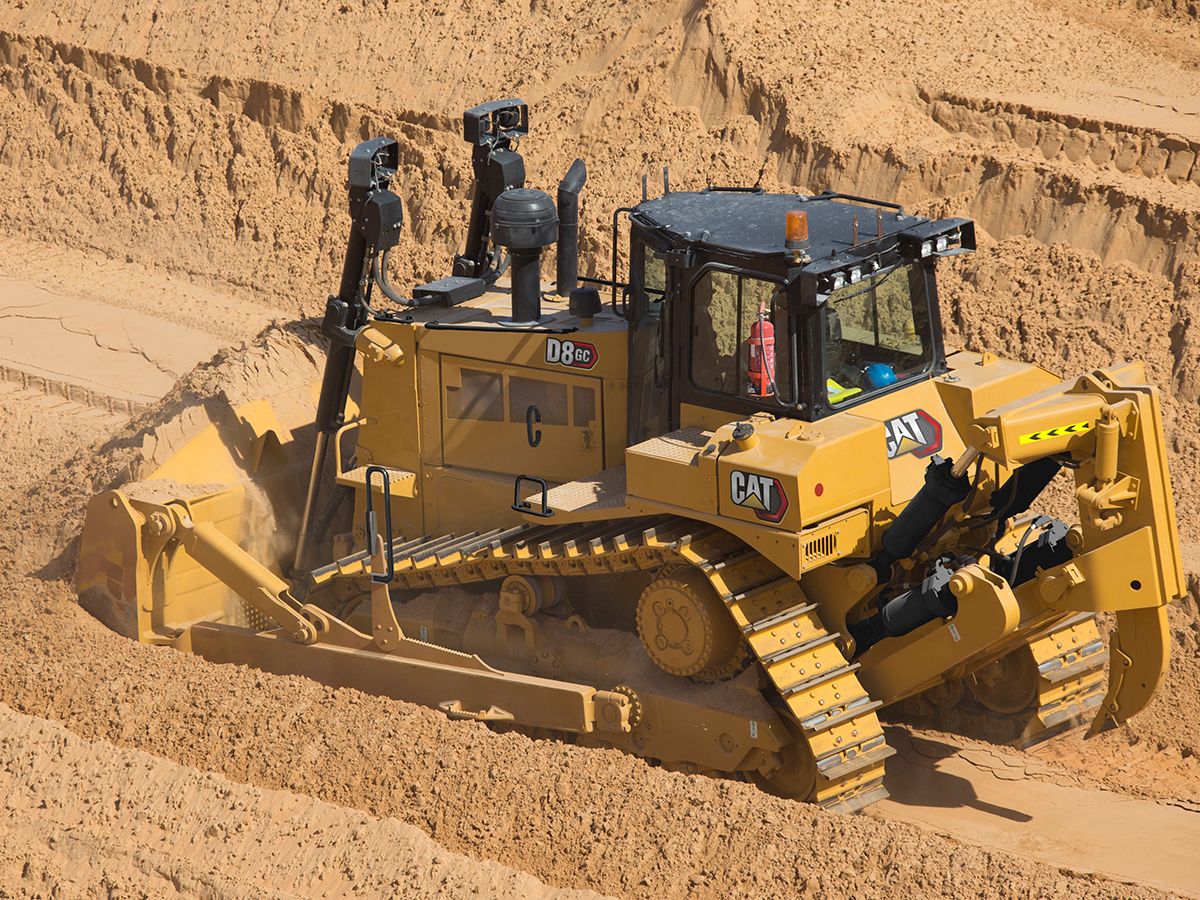

- Rear attachment choices add versatility - choose single-shank ripper, rigid drawbar, rear counterweights or a dealer-installed winch.
- A fixed ripper provides a simplified, lower cost option.
- Choose a single-shank ripper with pin puller to enable shank position changes from the cab.
DESERT/HIGH ABRASION
- Equip your dozer with factory features designed to enhance machine performance in extremely sandy or abrasive underfoot conditions.
- Cooling system is designed for high debris environments, with easy access for cleanout.
- Specially coated fan and radiator help resist abrasion.
- Core protection grid.
- High ambient fluids package.
- Sealed bottom guard and added seals to help keep fine abrasive particles out of components.
- Optional wear plates can be replaced to give you longer blade life when working in abrasive conditions.
COLD WEATHER CAPABLE
- For work in extreme cold, choose factory options for added starting capability and improved component performance in arctic temperatures.
- Cold weather batteries provide added cranking power.
- Arctic undercarriage and carrier rollers have cold weather seals for added protection.
- Arctic lubricant provides a thinner oil for better lubrication in extreme conditions.
Standard Equipment
-
NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
-
Powertrain
- Cat 3406C DITA diesel engine
- 3F/3R speed powershift transmission
- 4-planetary double reduction final drives
- Precleaner
- Fan speed - basic
- Cooling fan
- Fuel priming pump
-
Operator Environment
- Enclosed cab with integrated ROPS/FOPS
- Adjustable contour suspension cloth seat
- Adjustable armrest
- Retractable seatbelt, 76 mm (3 in) wide
- Differential steering tiller bar with dual-twist control
- Electronic monitoring system
- Underhood air conditioning
-
Undercarriage
- Suspended undercarriage: Heavy Duty Positive Pin Retention (PPR)
- Sealed and lubricated track: 44 section positive pin retention (PPR)
- Moderate Service track shoes
- Lifetime lubricated track rollers and idlers
- Hydraulic track adjusters
- Replaceable sprocket rim segments
-
Technology Products
- Product Link, Basic Cellular PL243
- Product link ready
-
Electrical
- 2 Batteries, 12V each, 24V system
- 12V Converter, 10 amp with outlet in cab
- LED Lights - 4
-
Hydraulics
- Load sensing dozer (lift/tilt) hydraulics
- Ripper (lift/pitch) hydraulics
- Independent steering and implement hydraulic pumps
-
Service and Maintenance
- Sampling ports for engine oil, coolant, powertrain oil, hydraulic oil
-
Blades
- Semi-Universal (SU) blade
-
Guards
- Bottom guards
-
Dozer Arrangements
- Standard Arrangement
Optional Equipment
-
NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
-
Powertrain
- Turbine precleaner
- Turbine precleaner with screen
- Fan speed - decrease
- Cooling fan - reversible
- Cooling fan - coated
- B100-compliant fuel lines (required for Indonesia)
-
Operator Environment
- Canopy with integrated ROPS/FOPS
- Vinyl seat
- No air conditioning
-
Undercarriage
- Suspended undercarriage - General Duty
- Suspended undercarriage - Heavy Duty Cold Weather
- General Duty track shoes
- Extreme Service track shoes
-
Technology Products
- Product Link, Cellular PL641
- Product Link, Satellite PL631
- No Product Link
-
Electrical
- 4 Batteries - 12V each, 24V system
- 4 Batteries - cold weather, 24V
- LED Lights - 6
- LED Lights - 10
-
Service and Maintenance
- High speed oil change system
-
Blades
- Semi-Universal (SU) blade with rock guard and wear plate
-
Rear Attachments
- Single shank ripper
- Single shank ripper - fixed link
- Single shank ripper with pin puller
- Multi-shank ripper
- Rear counterweight
- Additional counterweight
-
Guards
- Rear cab screen
- Bottom guards - heavy duty desert
- Fuel tank guard
-
Dozer Arrangements
- Basic Arrangement
- Desert Arrangement
