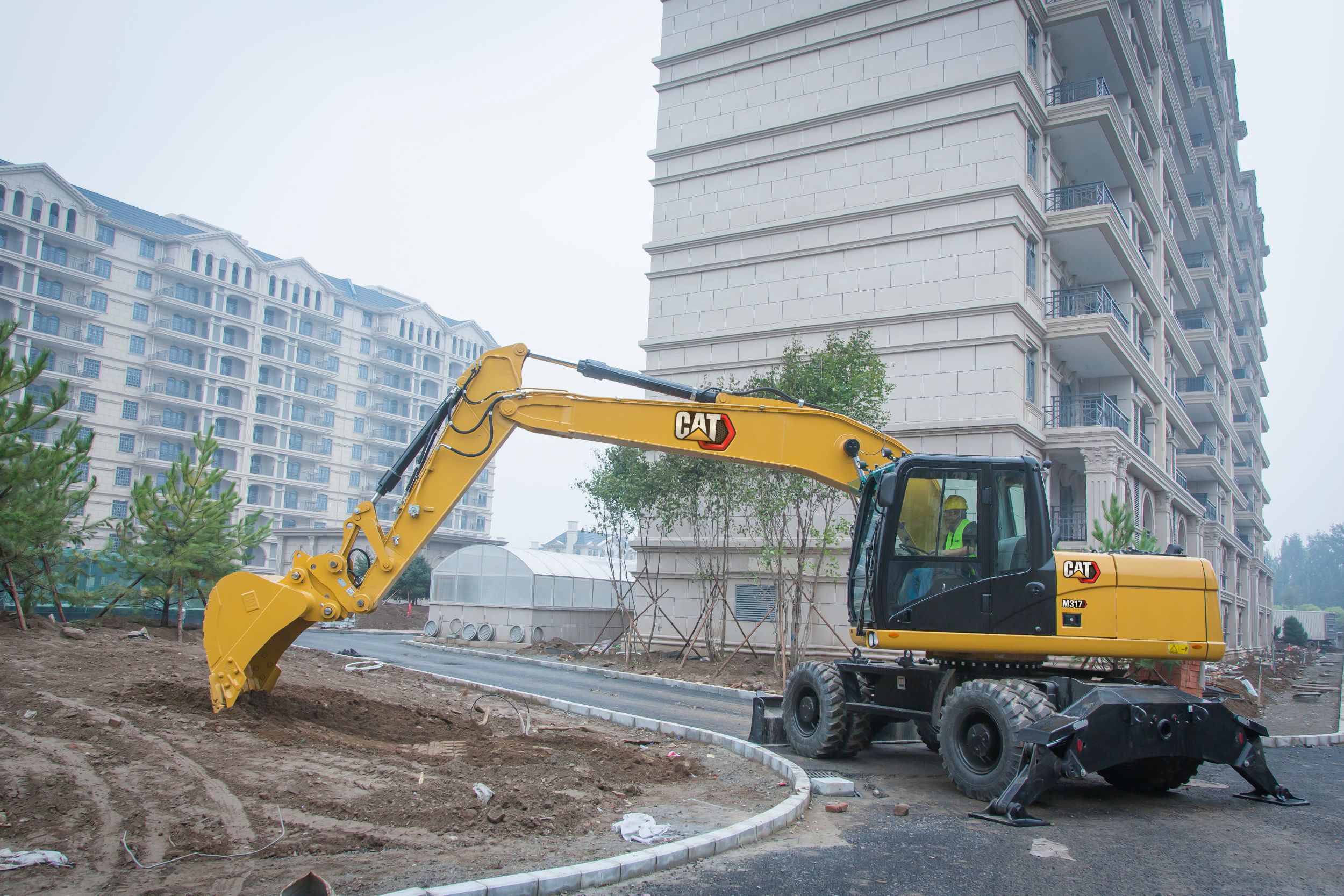

Technicial Specifications
| Engine Power - ISO 14396 | 108 kW |
| Engine Model | Cat® C4.4 |
| Bore | 105 mm |
| Displacement | 4.4 l |
| Stroke | 127 mm |
| Engine Emissions | Meets U.S. EPA Tier 3 and EU Stage IIIA emission standards. |
| Note (1) | Net power advertised is the power available at the flywheel when engine is equipped with fan, air cleaner, Clean Emission Module (CEM) exhaust gas aftertreatment, alternator, and cooling fan running at intermediate speed. |
| Note (2) | Advertised power is tested per the specified standard in effect at the time of manufacture. |
| Note (3) | Recommended for use up to 3000 m (9,843 ft) altitude with engine power derate above 3000 m (9,840 ft). |
| Note (4) | Rated speed at 2,000 rpm. |
| Operating Weight Maximum | 17500 kg |
| Operating Weight Minimum | 15300 kg |
| Note (1) | Operating weight includes full fuel tank, operator, 500 kg (1,102 lb) bucket and 10.00-20 dual pneumatic tires. Weight varies depending on configuration. |
| Maximum Travel Speed | 34 km/h |
| Main System - Maximum Flow - Implement | 220 l/min |
| Maximum Pressure - Equipment | 35000 kPa |
| Maximum Pressure - Swing | 37000 kPa |
| Maximum Pressure - Travel | 35000 kPa |
| Maximum Swing Torque | 42 kN·m |
| Maximum Swing Speed | 9 r/min |
| Cooling System | 33 l |
| Final Drive | 2.5 l |
| Fuel Tank | 240 l |
| Hydraulic System - Including Tank | 255 l |
| Hydraulic Tank | 135 l |
| Boom | 5050 mm (16'7") |
| Bucket | GD 0.83 m³ (1.09 yd³) |
| Stick | 2.4 m (7'10") |
| Counterweight Clearance | 1260 mm |
| Shipping Height - Top of Cab | 3150 mm |
| Shipping Length | 8330 mm |
| Tail Swing Radius | 2210 mm |
| Boom Type | One-Piece Boom |
| Bucket | GD 0.83 m³ (1.09 yd³) |
| Stick | 2.4 m (7'10") |
| Digging Height | 9070 mm |
| Dump Height | 6110 mm |
| Reach at Ground Level | 8970 mm |
| Vertical Wall Digging Depth | 3650 mm |
| Note (1) | Range values are calculated with a quick coupler and a 1100 mm/0.83m^3 bucket with a tip radius of 1574 mm (5'2"). |
| Note | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.85 kg of refrigerant which has a CO2 equivalent of 1.216 metric tonnes. |

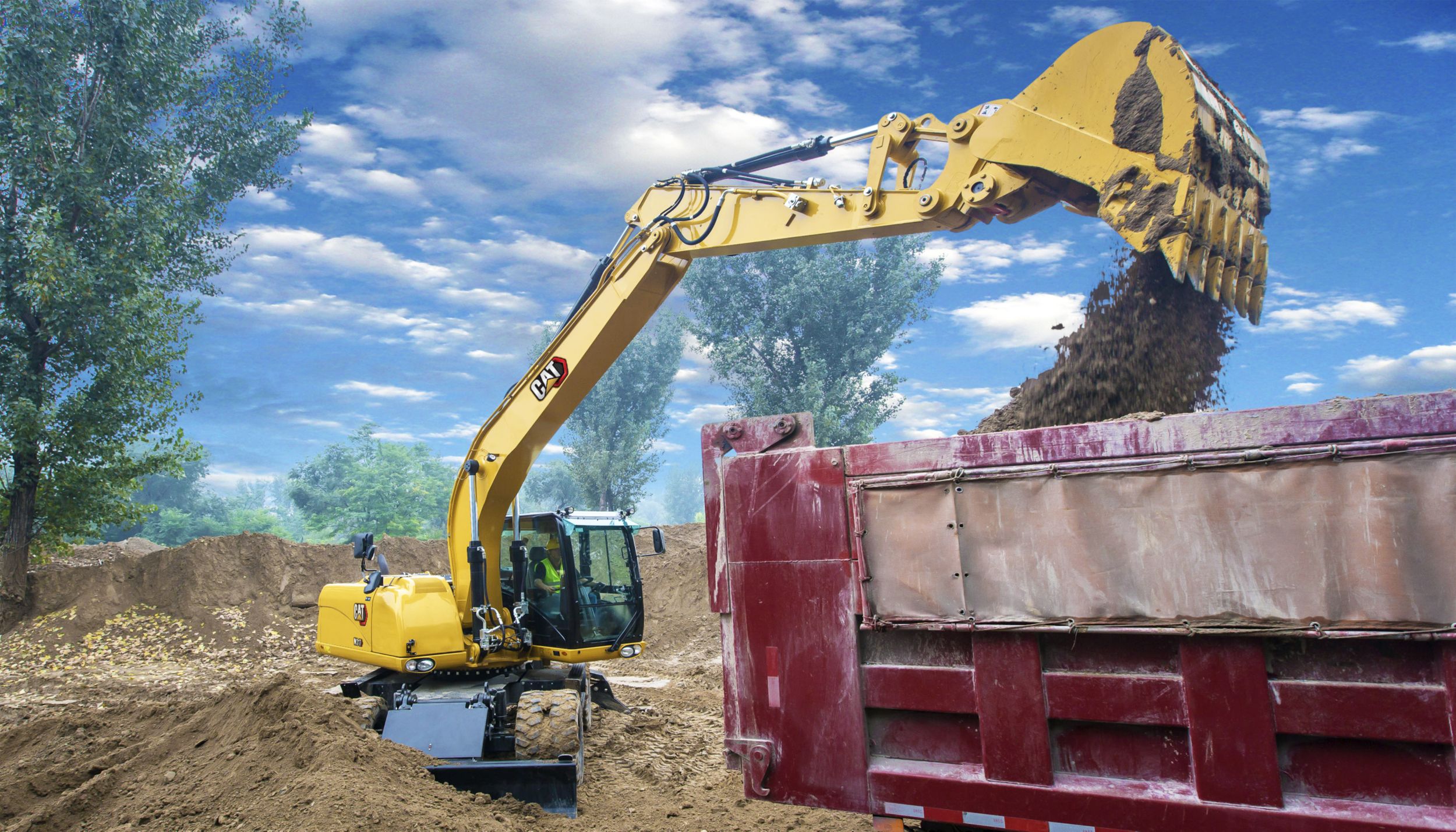

Advantages and Features
BUILT TO PERFORM
- The Cat® C4.4 engine meets U.S. EPA Tier 3 and EU Stage IIIA emission standards.
- Optimize fuel consumption during both working and traveling applications with our efficient fuel system.
- Reduce fuel consumption thanks to the Automatic Engine Speed Control; it lowers engine speed when no operation is performed.
- Optimize fuel consumption with fuel savers like one-touch low-idle control and enhanced Eco Mode.
- Enjoy quick response to changing loads with the constant power strategy.
- Get the right balance of reach and digging forces from various boom and stick options.
- Boost lift up to 7% using the one-touch heavy lift button.
- Further boost productivity with options like joystick steering or SmartBoom™.
- Experience fast and smooth combined movements when working and swinging simultaneously thanks to the dedicated swing pump.
INTEGRATED CAT TECHNOLOGIES

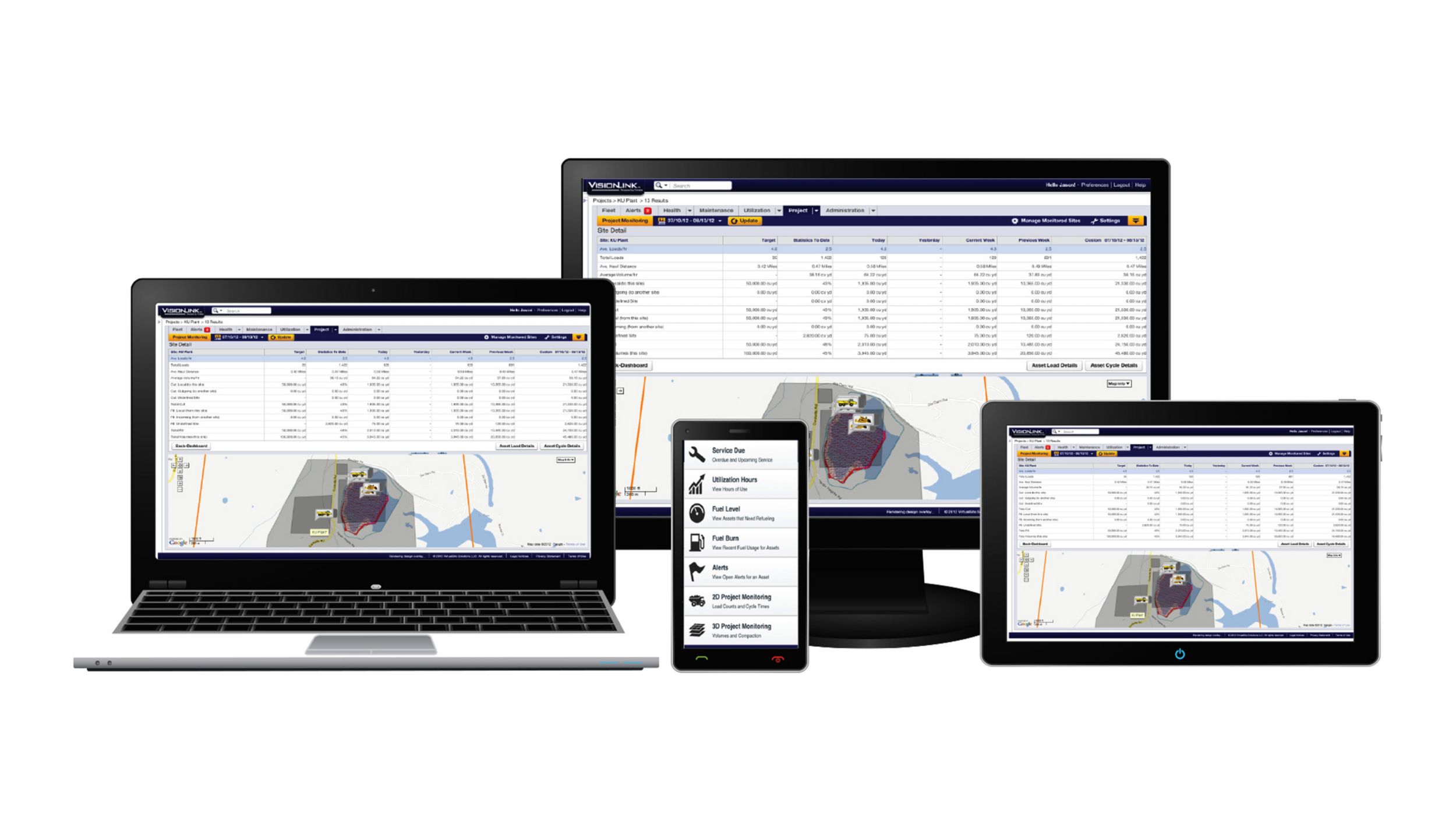

- Increase production and minimize operating cost with Cat Connect technology solutions. Link technologies wirelessly connect you to your job site, providing machine location, hours, fuel usage, idle time and event codes.
OPTIONS TO MEET YOUR NEEDS
- Move fast with 34 km/h (21.1 mile/h) maximum travel speed.
- Build the machine you want with multiple configurations and attachments.
- Ensure quick attachment changes with optional medium- and high-pressure hydraulics.
- Set up to 10 attachment flows and pressures with optional tool control.
BUILT-IN SAFETY FEATURES

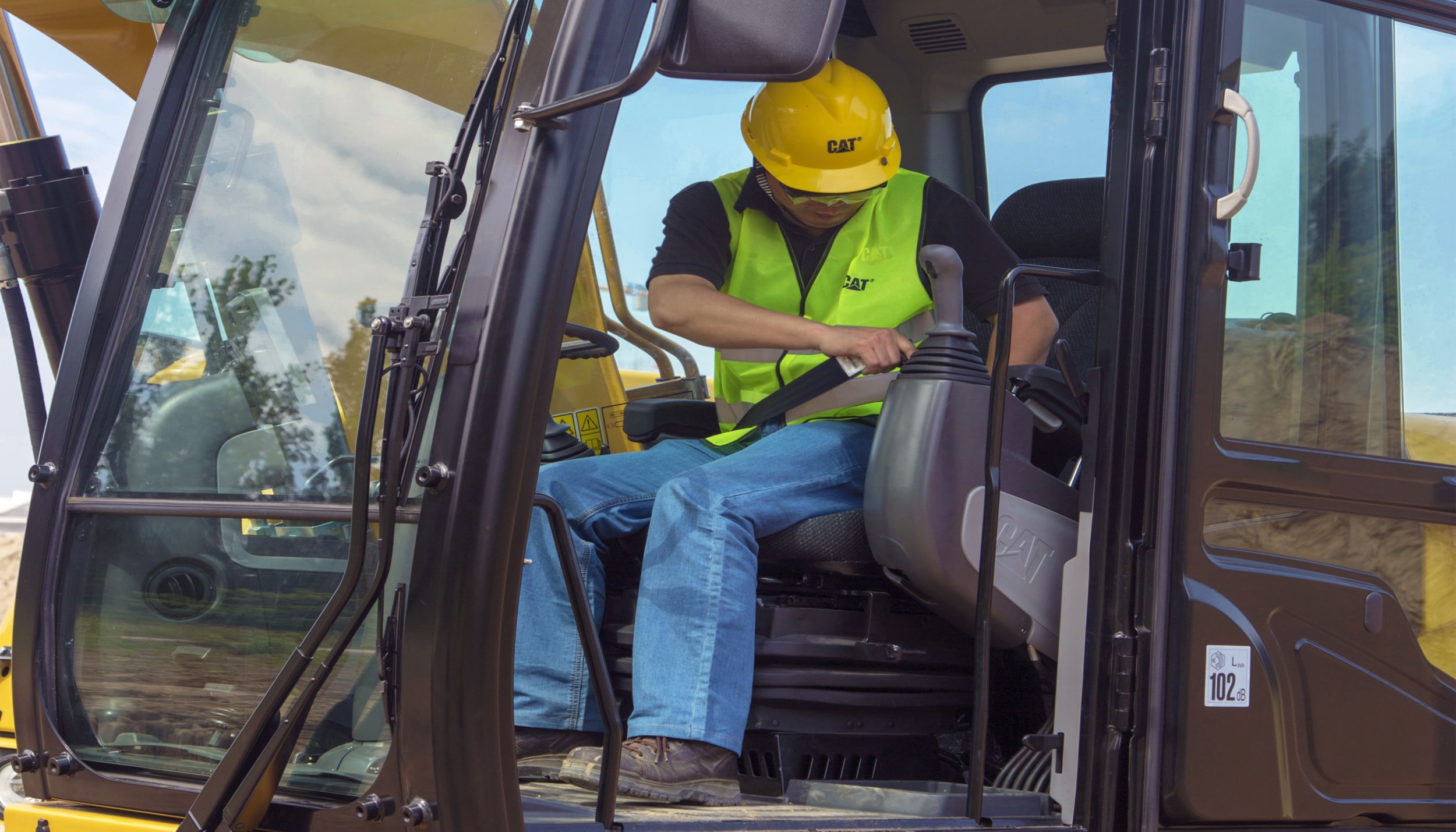

- Enjoy simple, ergonomically designed controls for easy operation.
- Stay comfortable in the optional heated seat; air suspension automatically adjusts to your weight.
- See all around you through expansive glass and the rear-mounted camera that displays objects on the color monitor.
- Work with low noise levels; the machine is quiet inside and out, making it ideal for areas with sound restrictions.
BUILT FOR LONG TERM PRODUCTION
- Count on long engine life due to our unique fuel system; it's designed to handle low-quality diesel fuel.
- Work year round with maintenance-free heavy-duty batteries and engine cold start capability.
- Count on less risk of drivetrain damage thanks to an exclusive transmission design and heavy-duty axles.
- Expect less risk of leaks and performance loss with resistant and durable Cat XT™-6 ES hoses.
LOWER MAINTENANCE COSTS

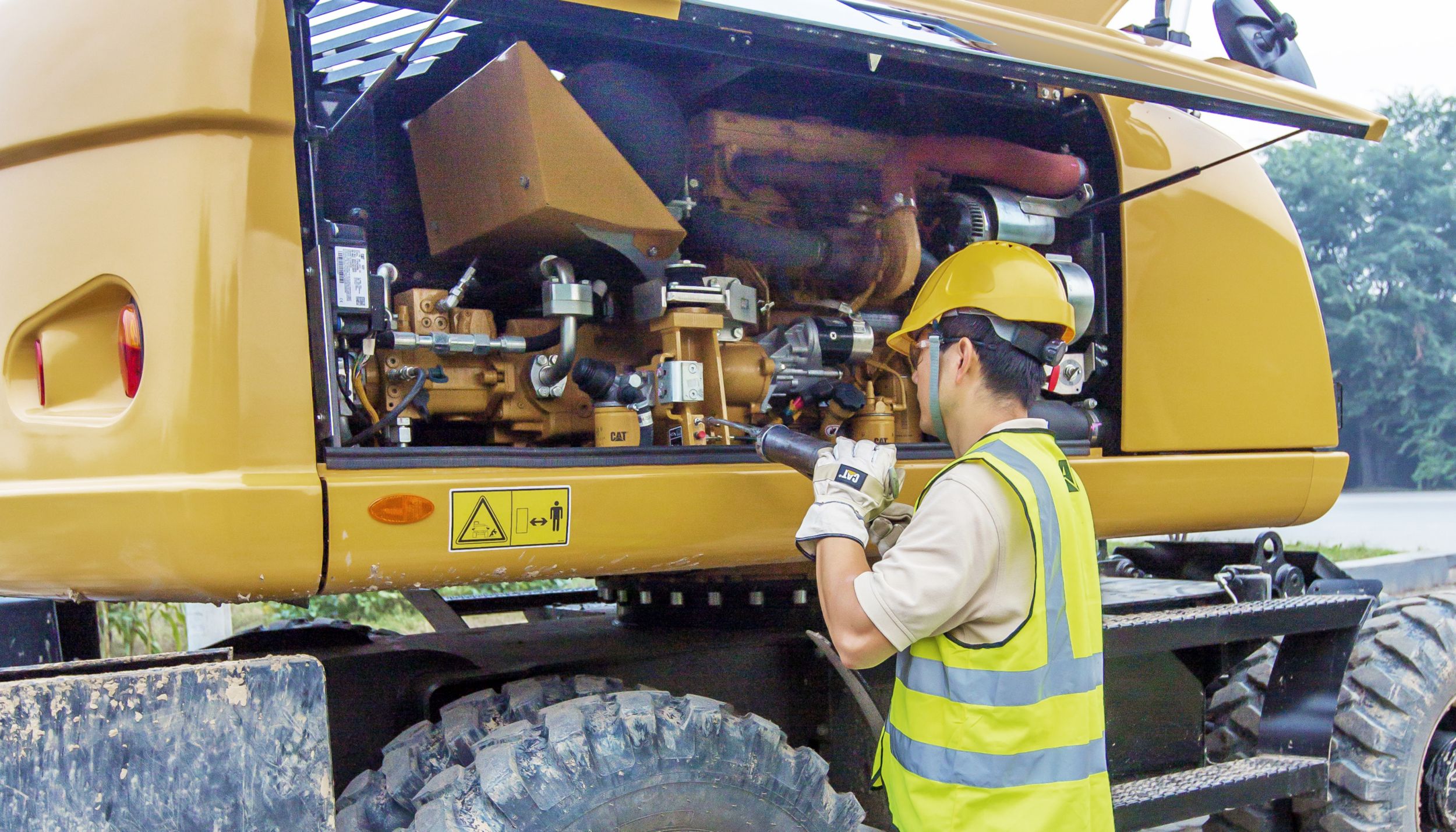

- Take advantage of ground-level access for all daily maintenance points.
- Experience more uptime with centralized, conveniently located greasing points.
- Reduce costs linked to fluids and disposals thanks to long service intervals.
Standard Equipment
-
NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
-
ELECTRICAL SYSTEM
- Alternator, 75 A
- Boom working light
- Cab mounted working lights, front and rear
- Cab interior light
- Main shut-off switch
- Roading and indicator lights, front and rear
- Maintenance free batteries
-
ENGINE
- Cat® C4.4 engine - meets U.S. EPA Tier 3 and EU Stage IIIA emission standards.
- Power mode selector
- Air filter/fuel filter
- Automatic engine speed control
- Automatic starting aid
- Fuel/water separator with level indicator
- Muffler
-
HYDRAULIC SYSTEM
- Heavy lift mode
- Separate swing pump
- Stick regeneration circuit
- Variable displacement, load sensing hydraulic system
- Automatic swing brake
- Capability to add auxiliary hydraulic circuits
- Anti drift devices for boom, stick and bucket*
- Adjustable hydraulic sensitivity
- Oil cooler
- Hydraulic mineral oil, Cat HYDO™ Advanced 10 oil
-
SAFETY AND SECURITY
- Camera mounted on counterweight
- Mirrors, frame and cab
- Travel alarm
- Signal/warning horn
-
SERVICE AND MAINTENANCE
- Sampling ports for Scheduled Oil Sampling
- Caterpillar Datalink and Electronic Technician capability
- Door locks and cab locks with Caterpillar one-key security system
-
CAT TECHNOLOGIES
- Cat Product Link™
-
UNDERCARRIAGE AND STRUCTURES
- All wheel drive
- Creeper speed
- Heavy-duty axles, advanced disc brake system and travel motor, adjustable braking force
- Oscillating front axle, lockable, with remote greasing point
- Two-piece drive shaft
- Two speed hydrostatic transmission
- Full hydraulic steering with emergency capability
- Parking brake
- Wide steps, left and right
- Two tool boxes in undercarriage, left and right
- Counterweight (3500 KG- 7716 lb)
Optional Equipment
-
NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
-
BOOM AND STICKS
- One-Piece Boom
- 2400 mm (7'10") stick
- 2600 mm (8'6") stick
- Bucket linkage with or without diverter valve
-
ELECTRICAL SYSTEM
- Electrical refueling pump
-
HYDRAULIC SYSTEM
- Auxiliary boom and stick lines
- Medium pressure control circuit
- Hammer circuit
- One/Two-way high pressure for hammer application
- Programmable flow for up to 10 work tools
- Quick coupler control
- Quick disconnect for hydraulic lines
-
SAFETY AND SECURITY
- Travel alarm with three selectable modes
- Rotating beacon on cab and chassis
-
UNDERCARRIAGE AND STRUCTURES
- 10.00-20 dual pneumatic tires
- 10.00-20 dual pneumatic tires with road profile
- Rear outrigger / front blade undercarriage
- Steel fenders
- Counterweight (3900 KG-8598 lb)
